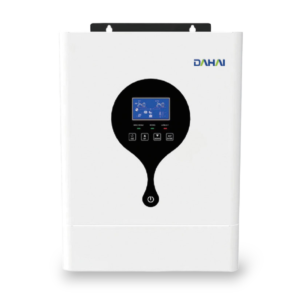

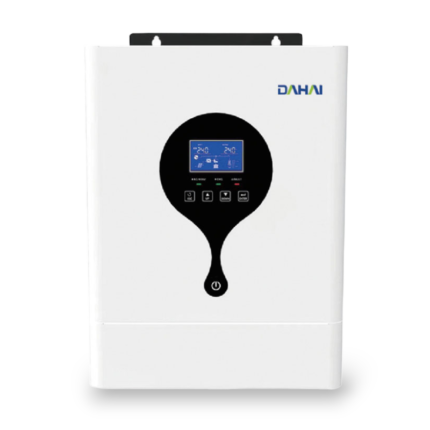

DHREVO VM 3.2KW24V

Description

Pure sine wave MPPT solar inverter Built-in 80/100A MPPT solar charger

Battery equalization function extend lifecycle reserved com port (RS-485, CAN) for BMS

DHREVO VM Series is suitable for off-grid applications.

High PV input voltage range With Touch Buttons

Rated Power	3200VA/W
AC INPUT
Voltage	230VAC
Selectable Voltage Range	170- 280VAC (For Personal Computers) ;90- 280 VAC (For Home Appliances)
Frequency Range	50Hz/60 Hz (Auto sensing)
AC OUTPUT
AC Voltage Regulation(Battery Mode)	230VAC+5%
Surge Power	6000VA
Eficiency (Peak)	90%~93%
Transfer Time	10ms (For Personal Computers) ; 20ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	24VDC
Floating Charge Voltage	27VDC
Overcharge Protection	33VDC
Solar Charger type	MPPT
Maximum PV Array Open Circuit Voltage	102VDC
Maximum PV Array Powel	1800W
MPPT Range @ Operating Voltage	30~80VDC
Maximum Solar Charge Current	65A
Maximum AC Charge Current	25A
Maximum Charge Current	80A
GENERAL PARAMTER
Operating Temperature	-10°C to 50°C
Relative humidity	5% to 95% Relative Humidity(Non-condensing)
Dimensions D x Wx H (mm)	118 .3 * 285 * 360.4
Net Weight(KG)	6.5
DISPLAY AND COMMUNICATION
Interface	Standard: RS232
Safety standard	EN/IEC 62109-1, EN/IEC 62109-2
