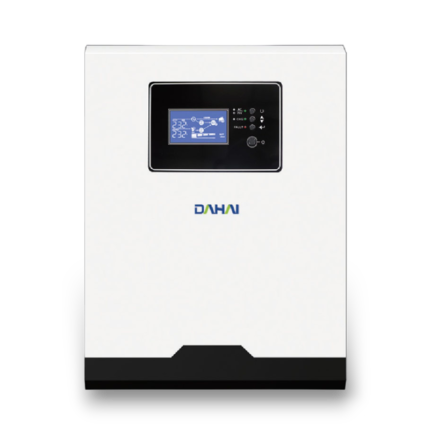

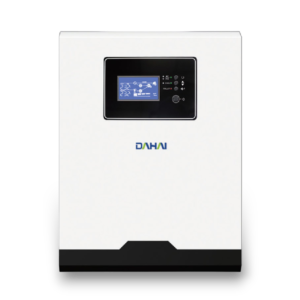

DHREVO VM II PRO 5.5KW48V

Description

Pure sine wave MPPT solar inverter Built-in 80/100A MPPT solar charger

Battery equalization function extend lifecycle reserved com port (RS-485, CAN) for BMS

DHREVO VM Series is suitable for off-grid applications.

High PV input voltage range With Touch Buttons

Rated Power	5500VA/5500W
INPUT
Voltage	230VAC
Selectable Voltage Range	170- 280VAC (For Personal Computers) ; 90- 280 VAC (For Home Appliances)
Frequency Range	50Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode)	230VAC+5%
Surge Power	11000VA
Efficiency (Peak)	up to 93 . 5%
Transfer Time	10ms (For Personal Computers) ; 20ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	48VDC
Floating Charge Voltage	54VDC
Overcharge Protection	63VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage	500VDC
Maximum PV Array Power	5500W
MPPT Range @ Operatng Voltage	60~450VDC
Maximum Solar Charge Current	100A
Maximum AC Charge Current	80A
Maximum Charge Current	100A
PHYSICAL
Dimensions D x W x H (mm)	400* 300*115
Net Weight(KG)	9
communication Interface	yes(optional)
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10°C to 50C
Storage Temperature	-15'C to 60C
